Conveyor Structure, Access & Buildings – 62.4 Tonnes

01st May 2019

Another successful project approaches completion on site, CM Design was tasked with a project to assist in the replacement of an existing belt conveyor. CM Design surveyed existing structures / equipment on site and provided Arrangement, Details and Installation Drawings for the following items:-

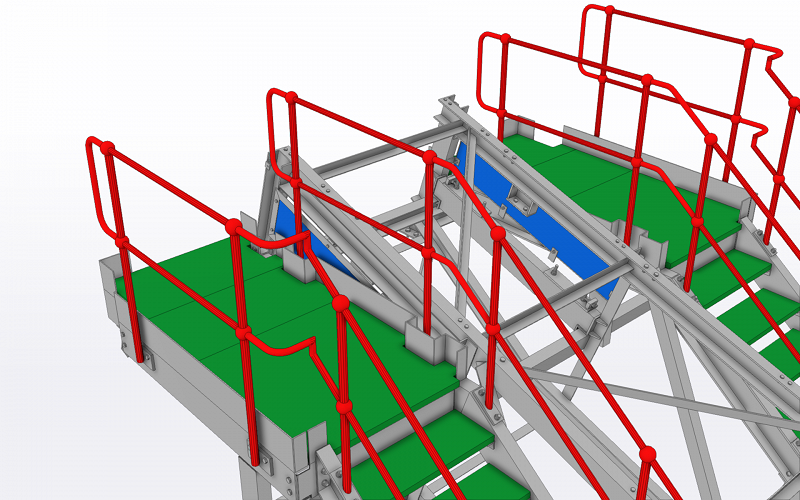

Conveyor Junction House structure and access stairs / platforms  – 15.2 Tonnes

Rail Unloading Building – 28.3 Tonnes

External Gantry structure and access stairs / platforms  – 8.6 Tonnes

Hopper Feed Conveyor structure and access ladders / platforms  – 3.1  Tonnes

Pit Enclosure Structure – 7.2 Tonnes
