Silo Details

01st July 2020

Great, challenging project, we were asked to detail a silo from some existing arrgt drawings to allow for the Silo to be manufactured, providing all part drawings including dxf files for the cylindrical body, top and bottom transition.

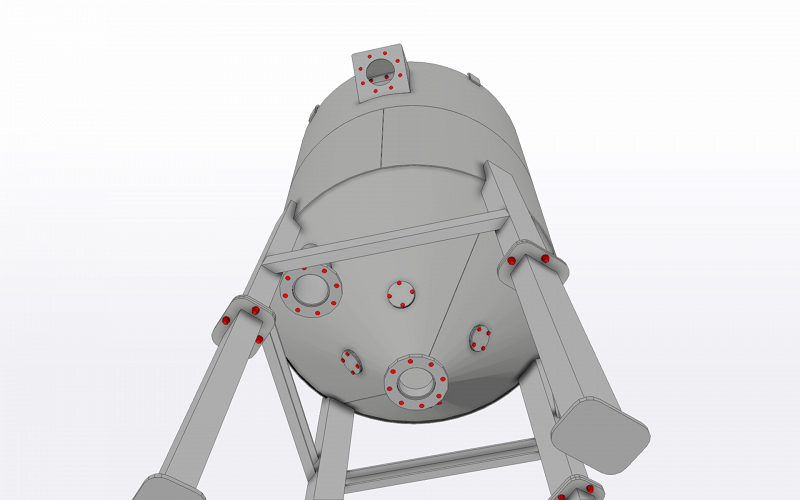

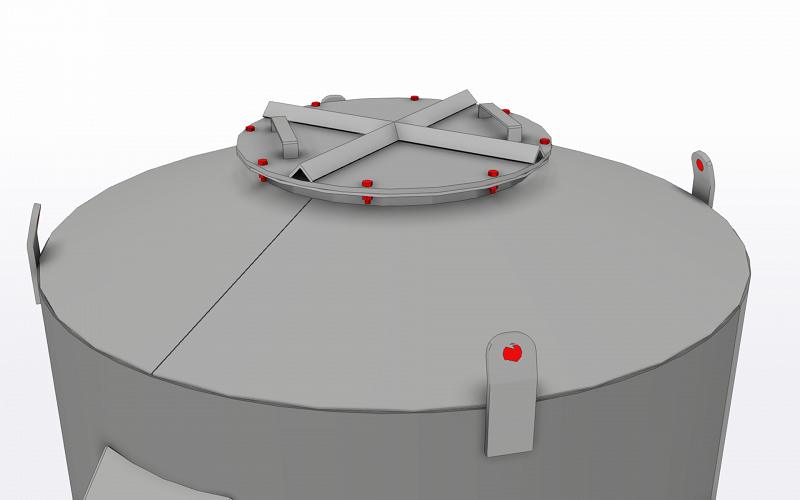

Silo was detailed in Tekla Structures and your client was provided with a full set of assembly drgs, detail drgs and NC and Dxf data.
