External Duct Support Structure

01st July 2020

One of our valued customers tasked us with detailing an external duct support structure which was to be clamped back to an existing building structure.

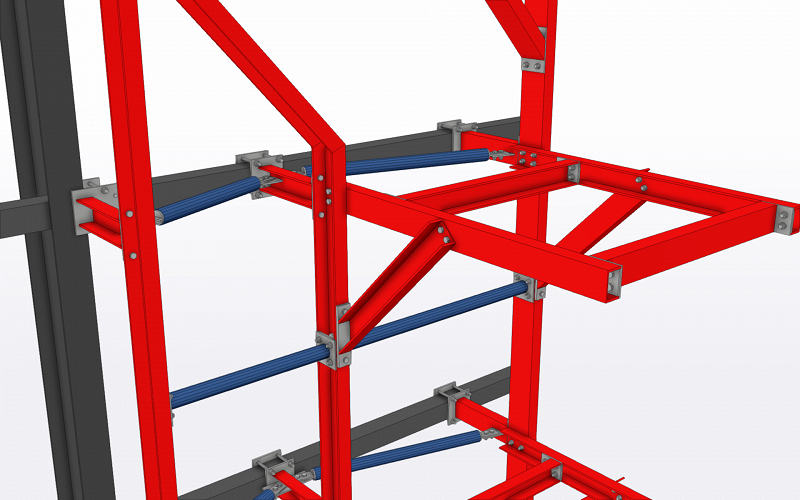

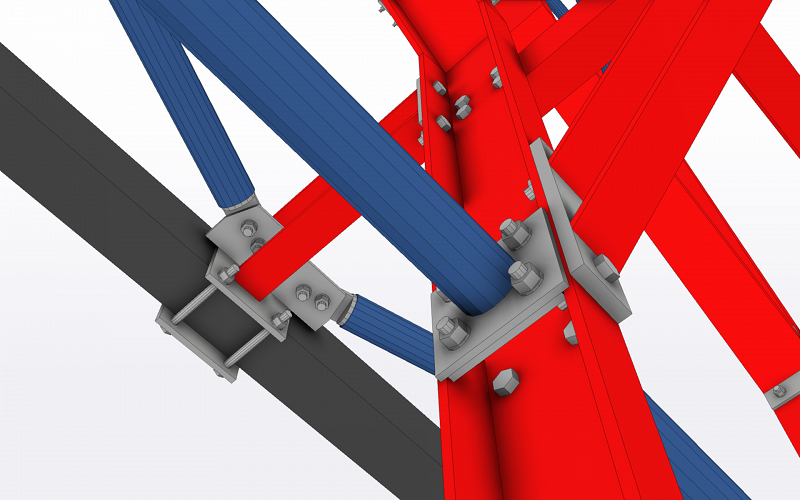

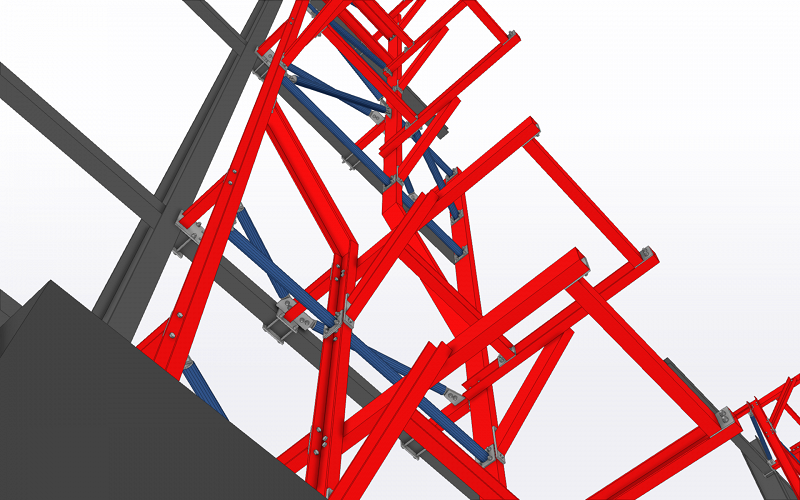

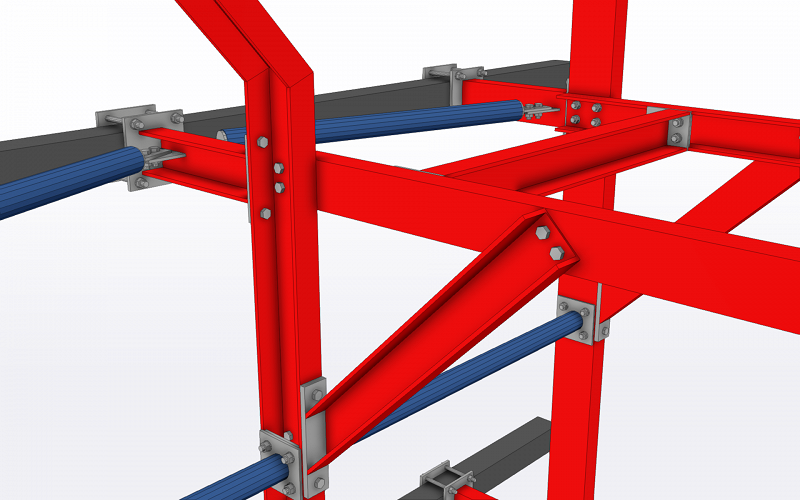

Building structure was laid out using some existing drawings and duct support structure modelled to suit in Tekla Structures, all GA's, Assy Drgs, Detail Drgs and NC / Dxf data supplied.
